ConnectManhattanBundle

class ipkiss3.all.ConnectManhattanBundle

Connects multiple ports together using a bundle of waveguides separated by a fixed distance.

A Manhattan bundle consists of customizable fanouts at the start and at the end, with a Manhattan array between them.

A fanout routes inputs to evenly spaced outputs. The Manhattan array routes evenly spaced inputs to evenly spaced outputs using Manhattan routing.

Parameters:

end_fanout: _BundleFanout, required

The type of fanout to use at the end (if needed).

start_fanout: _BundleFanout, required

The type of fanout to use at the start (if needed).

cover_layers: List with type restriction, allowed types: <class ‘ipkiss.primitives.layer.Layer’>, optional

Layers used to generate additional coverage of the trace. Useful to avoid gaps between the claddings of the waveguides and DRC-errors

control_point_reference: optional, *None allowed*

Port (instance:port identifier or an actual i3.Port) belonging to the waveguide that will be used as a reference to define the control points in the bundle. If None, use the first port defined in the list of connections.

control_points: list, optional

Control the routing by passing through a list of i3.H / i3.V instances. See also the parameter control_point_reference to identify relative to which port / waveguide the control points pass. When using i3.START, this refers to the port at the start of the bundle before the fanout.

name: ( str and String that contains only ISO/IEC 8859-1 (extended ASCII py3) or pure ASCII (py2) characters ), optional, *None allowed*

min_spacing: float and int, float, integer, floating and number >= 0, optional

Minimal spacing between parallel sections of the route.

end_straight: float and int, float, integer, floating and number >= 0, optional

The length of the straight end section of the route.

start_straight: float and int, float, integer, floating and number >= 0, optional

The length of the straight start section of the route.

min_straight: float and int, float, integer, floating and number >= 0, optional

The minimum length of any straight sections in the route.

angle_step: float and number > 0, optional

Angle step for rounding.

rounding_algorithm: optional

Rounding algorithm (ShapeRound, ShapeRoundAdiabaticSpline, …). Takes a shape as input and returns a new (rounded) shape.

bend_radius: float and number > 0, optional

Bend radius for the auto-generated bends

pitch: float and number > 0, optional

Fixed spacing between the routes. Defaults to the minimum spacing allowed by the technology.

See also

ConnectManhattan

ConnectBend

place_and_route

SBendFanout

ManhattanFanout

ConnectElectricalBundle

Notes

The routing uses the same algorithm as ConnectManhattan, but ensures that waveguides are routed together as an array with a given pitch. To ensure all waveguides can be routed correctly, we route the center waveguide, and we increment the bend radius with half the width of the bundle.

For the control points, only horizontal i3.H / vertical i3.V control points can be used. Be aware that these control points are only applicable to the array section (the middle section) of the bundle. See the examples for an illustration.

Currently, i3.SBendFanout and i3.ManhattanFanout are the predefined fanout types that can be used for the start_fanout and end_fanout properties.

Examples

Basic usage of ConnectManhattanBundle using default parameters:

import si_fab.all as pdk  # noqa: F401
from picazzo3.fibcoup.curved import FiberCouplerCurvedGrating
import ipkiss3.all as i3

fc = FiberCouplerCurvedGrating()

circuit = i3.Circuit(
    insts={
        "fc1": fc,
        "fc2": fc,
        "fc3": fc,
        "fc4": fc,
        "fc5": fc,
        "fc6": fc,
    },
    specs=[
        i3.Place("fc1:out", (0.0, -70.0), angle=0),
        i3.Place("fc2:out", (0.0, 0.0), angle=0),
        i3.Place("fc3:out", (0.0, 70.0), angle=0),
        i3.Place("fc4:out", (200.0, 200 - 50.0), angle=180),
        i3.Place("fc5:out", (200.0, 200.0), angle=180),
        i3.Place("fc6:out", (200.0, 200 + 50.0), angle=180),
        i3.ConnectManhattanBundle(
            connections=[
                ("fc1:out", "fc4:out"),
                ("fc2:out", "fc5:out"),
                ("fc3:out", "fc6:out"),
            ],
            start_fanout=i3.SBendFanout(),
            end_fanout=i3.SBendFanout(),
        ),
    ],
)

circuit_lo = circuit.Layout()
circuit_lo.visualize()

Customize the fanouts independently:

import si_fab.all as pdk  # noqa: F401
from picazzo3.fibcoup.curved import FiberCouplerCurvedGrating
import ipkiss3.all as i3

fc = FiberCouplerCurvedGrating()

circuit = i3.Circuit(
    insts={
        "fc1": fc,
        "fc2": fc,
        "fc3": fc,
        "fc4": fc,
        "fc5": fc,
        "fc6": fc,
    },
    specs=[
        i3.Place("fc1:out", (0.0, -70.0), angle=0),
        i3.Place("fc2:out", (0.0, 0.0), angle=0),
        i3.Place("fc3:out", (0.0, 70.0), angle=0),
        i3.Place("fc4:out", (200.0, 200 - 50.0), angle=0),
        i3.Place("fc5:out", (200.0, 200.0), angle=0),
        i3.Place("fc6:out", (200.0, 200 + 50.0), angle=0),
        i3.ConnectManhattanBundle(
            connections=[
                ("fc1:out", "fc6:out"),
                ("fc2:out", "fc5:out"),
                ("fc3:out", "fc4:out"),
            ],
            start_fanout=i3.SBendFanout(max_sbend_angle=80),
            end_fanout=i3.SBendFanout(reference="fc4:out", max_sbend_angle=70),
            bend_radius=10,
            pitch=5,
        ),
    ],
)

circuit_lo = circuit.Layout()
circuit_lo.visualize()

Use a different rounding algorithm for the bundle:

import si_fab.all as pdk  # noqa: F401
from picazzo3.fibcoup.curved import FiberCouplerCurvedGrating
import ipkiss3.all as i3

fc = FiberCouplerCurvedGrating()

circuit = i3.Circuit(
    insts={
        "fc1": fc,
        "fc2": fc,
        "fc3": fc,
        "fc4": fc,
        "fc5": fc,
        "fc6": fc,
        "fc7": fc,
        "fc8": fc,
        "fc9": fc,
        "fc10": fc,
    },
    specs=[
        i3.Place("fc1:out", (0.0, -80.0), angle=0),
        i3.Place("fc2:out", (0.0, -40.0), angle=0),
        i3.Place("fc3:out", (0.0, 0.0), angle=0),
        i3.Place("fc4:out", (0.0, 40.0), angle=0),
        i3.Place("fc5:out", (0.0, 80.0), angle=0),
        i3.Place("fc6:out", (300.0 - 100.0, 300 - 50.0), angle=-90),
        i3.Place("fc7:out", (300.0 - 50.0, 300.0 - 30.0), angle=-90),
        i3.Place("fc8:out", (300.0, 300), angle=-90),
        i3.Place("fc9:out", (300.0 + 50.0, 300 - 30.0), angle=-90),
        i3.Place("fc10:out", (300.0 + 100.0, 300 - 50.0), angle=-90),
        i3.ConnectManhattanBundle(
            connections=[
                ("fc1:out", "fc10:out"),
                ("fc2:out", "fc9:out"),
                ("fc3:out", "fc8:out"),
                ("fc4:out", "fc7:out"),
                ("fc5:out", "fc6:out"),
            ],
            start_fanout=i3.SBendFanout(max_sbend_angle=80),
            end_fanout=i3.SBendFanout(max_sbend_angle=80),
            pitch=5,
            rounding_algorithm=i3.EulerRoundingAlgorithm(),
            bend_radius=30.0,
        ),
    ],
)

circuit_lo = circuit.Layout()
circuit_lo.visualize()

Use the cover_layers argument to cover the bundle and fanout with additional layers:

import si_fab.all as pdk  # noqa: F401
from picazzo3.fibcoup.curved import FiberCouplerCurvedGrating
import ipkiss3.all as i3

fc = FiberCouplerCurvedGrating()

circuit = i3.Circuit(
    insts={
        "fc1": fc,
        "fc2": fc,
        "fc3": fc,
        "fc4": fc,
        "fc5": fc,
        "fc6": fc,
    },
    specs=[
        i3.Place("fc1:out", (0.0, -70.0), angle=0),
        i3.Place("fc2:out", (0.0, 0.0), angle=0),
        i3.Place("fc3:out", (0.0, 70.0), angle=0),
        i3.Place("fc4:out", (200.0, 200 - 50.0), angle=0),
        i3.Place("fc5:out", (200.0, 200.0), angle=0),
        i3.Place("fc6:out", (200.0, 200 + 50.0), angle=0),
        i3.ConnectManhattanBundle(
            connections=[
                ("fc1:out", "fc6:out"),
                ("fc2:out", "fc5:out"),
                ("fc3:out", "fc4:out"),
            ],
            start_fanout=i3.SBendFanout(),
            end_fanout=i3.SBendFanout(),
            cover_layers=[i3.TECH.PPLAYER.DOC],
        ),
    ],
)

circuit_lo = circuit.Layout()
circuit_lo.visualize()

Example with strict=False in i3.Circuit (note the duplicate fc1:out connection):

"""Giving invalid connections with strict=False"""
import si_fab.all as pdk  # noqa: F401
from picazzo3.fibcoup.curved import FiberCouplerCurvedGrating
import ipkiss3.all as i3

fc = FiberCouplerCurvedGrating()

circuit = i3.Circuit(
    insts={"fc1": fc, "fc2": fc, "fc3": fc, "fc4": fc, "fc5": fc, "fc6": fc},
    specs=[
        i3.Place("fc1:out", (0.0, 0.0), angle=0),
        i3.Place("fc2:out", (0.0, 40.0), angle=0),
        i3.Place("fc3:out", (0.0, 80.0), angle=0),
        i3.Place("fc4:out", (200.0 - 50.0, 200.0 - 30.0), angle=-90),
        i3.Place("fc5:out", (200.0, 200), angle=-90),
        i3.Place("fc6:out", (200.0 + 50.0, 200 - 30.0), angle=-90),
        i3.ConnectManhattanBundle(
            connections=[
                ("fc1:out", "fc1:out"),
                ("fc2:out", "fc5:out"),
                ("fc3:out", "fc4:out"),
            ],
            start_fanout=i3.SBendFanout(),
            end_fanout=i3.SBendFanout(),
            pitch=5,
            name="bundle",
        ),
    ],
    strict=False,
    name="circuit",
)

circuit_lo = circuit.Layout()
circuit_lo.write_gdsii("manhattan_bundle.gds")
circuit_lo.visualize()

Using control points:

import si_fab.all as pdk  # noqa: F401
from picazzo3.fibcoup.curved import FiberCouplerCurvedGrating
import ipkiss3.all as i3

fc = FiberCouplerCurvedGrating()

circuit = i3.Circuit(
    insts={
        "fc1": fc,
        "fc2": fc,
        "fc3": fc,
        "fc4": fc,
        "fc5": fc,
        "fc6": fc,
    },
    specs=[
        i3.Place("fc1:out", (0.0, -70.0), angle=0),
        i3.Place("fc2:out", (0.0, 0.0), angle=0),
        i3.Place("fc3:out", (0.0, 70.0), angle=0),
        i3.Place("fc4:out", (200.0, 200 - 50.0), angle=180),
        i3.Place("fc5:out", (200.0, 200.0), angle=180),
        i3.Place("fc6:out", (200.0, 200 + 50.0), angle=180),
        i3.ConnectManhattanBundle(
            connections=[("fc1:out", "fc4:out"), ("fc2:out", "fc5:out"), ("fc3:out", "fc6:out")],
            start_fanout=i3.SBendFanout(),
            end_fanout=i3.SBendFanout(),
            control_point_reference="fc3:out",
            control_points=[i3.V(i3.START + 150.0), i3.H(i3.START + 50.0), i3.V(i3.PREV - 200.0)],
        ),
    ],
)

circuit_lo = circuit.Layout()
circuit_lo.visualize()

Control points are only applied to the array section. To control the fanouts, use reference and end_position:

def __example7(self):
    import si_fab.all as pdk  # noqa: F401
    from picazzo3.fibcoup.curved import FiberCouplerCurvedGrating
    import ipkiss3.all as i3

    fc = FiberCouplerCurvedGrating()
    insts = {
        "fc1": fc,
        "fc2": fc,
        "fc3": fc,
        "fc4": fc,
        "fc5": fc,
        "fc6": fc,
    }

    place_specs = [
        i3.Place("fc1:out", (0.0, -70.0), angle=0),
        i3.Place("fc2:out", (0.0, 0.0), angle=0),
        i3.Place("fc3:out", (0.0, 70.0), angle=0),
        i3.Place("fc4:out", (200.0, 200 - 50.0), angle=180),
        i3.Place("fc5:out", (200.0, 200.0), angle=180),
        i3.Place("fc6:out", (200.0, 200 + 50.0), angle=180),
    ]

    route_specs = [
        i3.ConnectManhattanBundle(
            connections=[
                ("fc1:out", "fc4:out"),
                ("fc2:out", "fc5:out"),
                ("fc3:out", "fc6:out"),
            ],
            start_fanout=i3.SBendFanout(reference="fc3:out", end_position=(50, 35), max_sbend_angle=80),
            end_fanout=i3.SBendFanout(reference="fc6:out", max_sbend_angle=80),
            control_point_reference="fc3:out",
            control_points=[i3.V(i3.START + 150.0), i3.H(i3.START + 50.0), i3.V(i3.PREV - 200.0)],
            pitch=5,
            min_spacing=5,
        )
    ]

    circuit = i3.Circuit(insts=insts, specs=place_specs + route_specs)

    circuit_lo = circuit.Layout()
    circuit_lo.visualize()

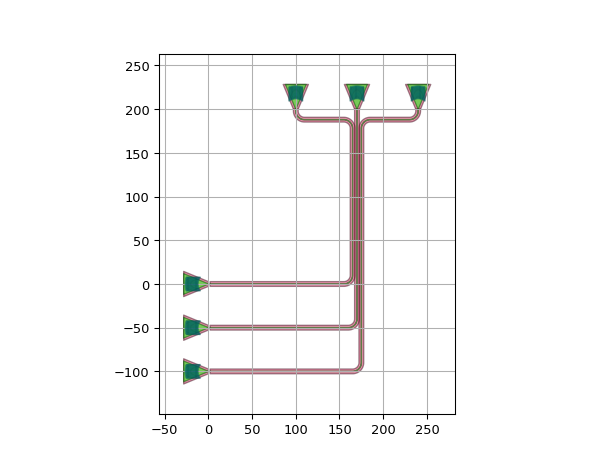

Using different types of Fanout:

import si_fab.all as pdk  # noqa: F401
from picazzo3.fibcoup.curved import FiberCouplerCurvedGrating
import ipkiss3.all as i3

fc = FiberCouplerCurvedGrating()

circuit = i3.Circuit(
    insts={
        "fc1": fc,
        "fc2": fc,
        "fc3": fc,
        "fc4": fc,
        "fc5": fc,
        "fc6": fc,
    },
    specs=[
        i3.Place("fc1:out", (0.0, 0), angle=0),
        i3.Place("fc2:out", (0, -50), angle=0),
        i3.Place("fc3:out", (0, -100), angle=0),
        i3.Place("fc4:out", (240.0, 200), angle=-90),
        i3.Place("fc5:out", (170.0, 200.0), angle=-90),
        i3.Place("fc6:out", (100.0, 200), angle=-90),
        i3.ConnectManhattanBundle(
            connections=[
                ("fc1:out", "fc6:out"),
                ("fc2:out", "fc5:out"),
                ("fc3:out", "fc4:out"),
            ],
            start_fanout=i3.ManhattanFanout(
                output_direction=i3.NORTH,
            ),
            end_fanout=i3.SBendFanout(),
            pitch=5,
            bend_radius=10,
        ),
    ],
)

circuit_lo = circuit.Layout()
circuit_lo.visualize()
